Design and Construction
Design:
Every Robt. C. Morrow guitar begins with a collaborative design conversation between myself and the client. This initial step is essential for understanding their goals—including the desired tonal characteristics, playability preferences, and aesthetic considerations. My aim is always to create a guitar that’s not simply a reproduction of a vintage design, but a personalized instrument that fits the player's hands and reflects their musical voice.
We carefully consider every element of the guitar—tone woods, body size, neck profile, and finishing details such as tuning machines and bridge pins. All decisions are made together, ensuring that each detail is thoughtfully agreed upon before I make the first cut of wood.
Based on that design discussion, I provide a build contract for review and approval. This includes:
A full list of details and specifications for the proposed guitar
Pricing, which reflects a combination of labor and materials
An estimated delivery window (typically 12 to 18 months from the signing of the final contract)
Construction:
I believe the quality of a guitar is inseparable from the quality of its materials. That’s why I select only the finest tone woods and components for each build. The woods I use are vintage-grade, chosen for their acoustic properties, grain structure, and aesthetic beauty. I typically work with period-correct species like Spruce for soundboards and Rosewood or Mahogany for backs and sides, though I’m happy to explore other options to suit the player’s needs.
Building each guitar is a slow, intentional process—every stage is completed with care and precision. My construction methods pay tribute to the master luthiers of the early 20th century, blending traditional craftsmanship with modern knowledge.
Traditional Construction Techniques: I use modern adhesive, protein glue, or hide glue for all structural joints. These glues provide strong bonds while enabling excellent energy transfer between components, contributing to a resonant and vibrant sound.
Individualized Voicing: I hand-voice the top of each guitar, carefully shaping the internal bracing to fine-tune the tonal response. This process ensures a balanced blend of bass, midrange, and treble—unique to the wood and tailored to the player's preferences.
Attention to Detail: From the precise dovetail neck joint to the careful leveling and crowning of the frets, I treat every aspect of the build as critical to the final instrument. The result is exceptional intonation, effortless playability, and a truly inspiring feel.
These images are of the 00-30 “1910” 12 Fret guitar under construction. It is built with a torrefied Adirondack Spruce top/soundboard and Brazilian Rosewood for the sides and back. The purflings and backstrip were custom made by Gurian Instruments to match the original 1910 Martin 00-30 that this guitar is based on. This particular guitar has about 125-150 hours of work for its construction - from raw materials to finished guitar ready to play.
00-30 “1910” 12 fret Build:
Brazilian Rosewood back with 30 Style backstrip.
Torrefied Adirondack Spruce soundboard/top with abalone pearl inlay around the soundhole.

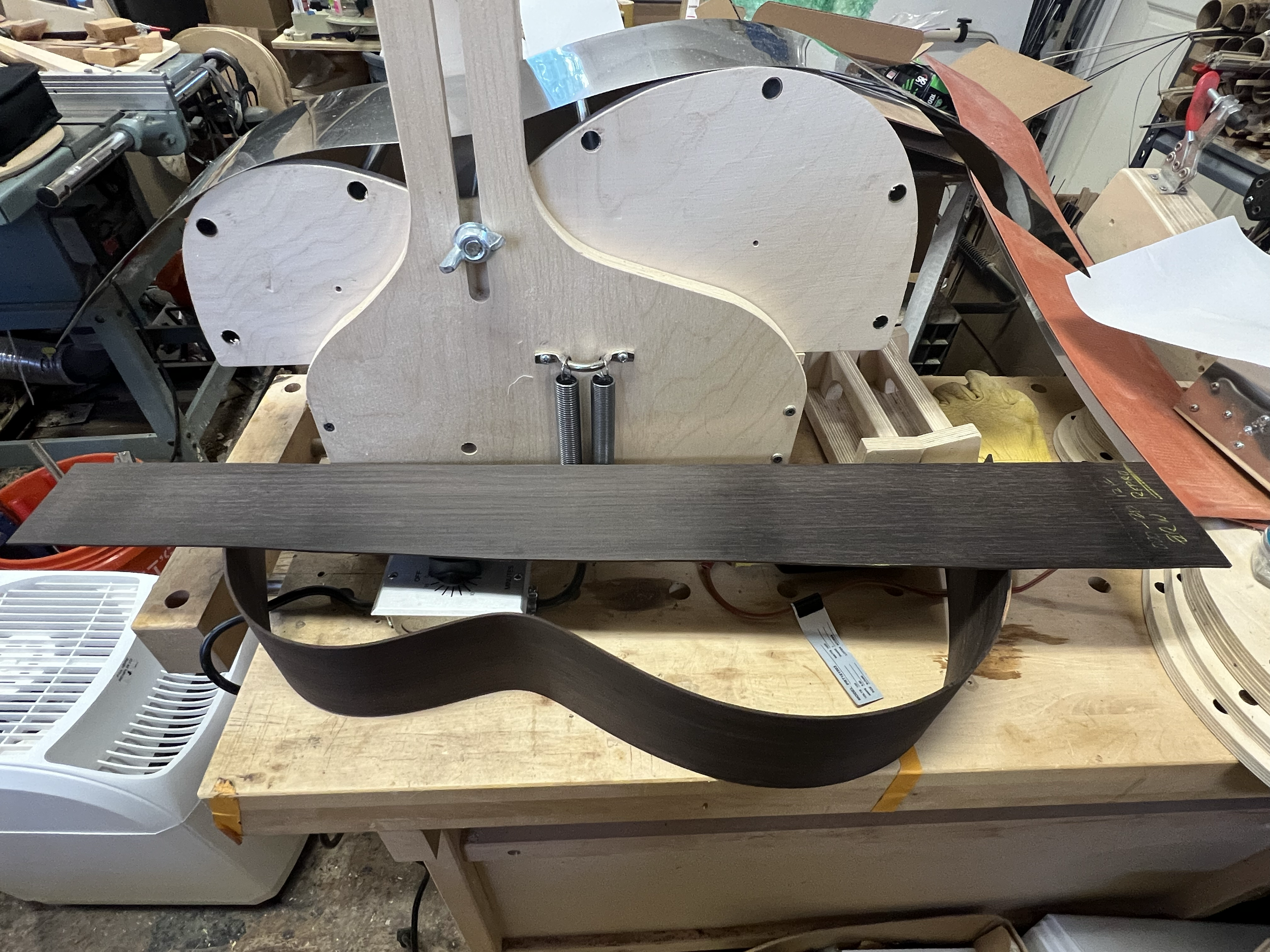

Bending the Brazilian Rosewood sides.

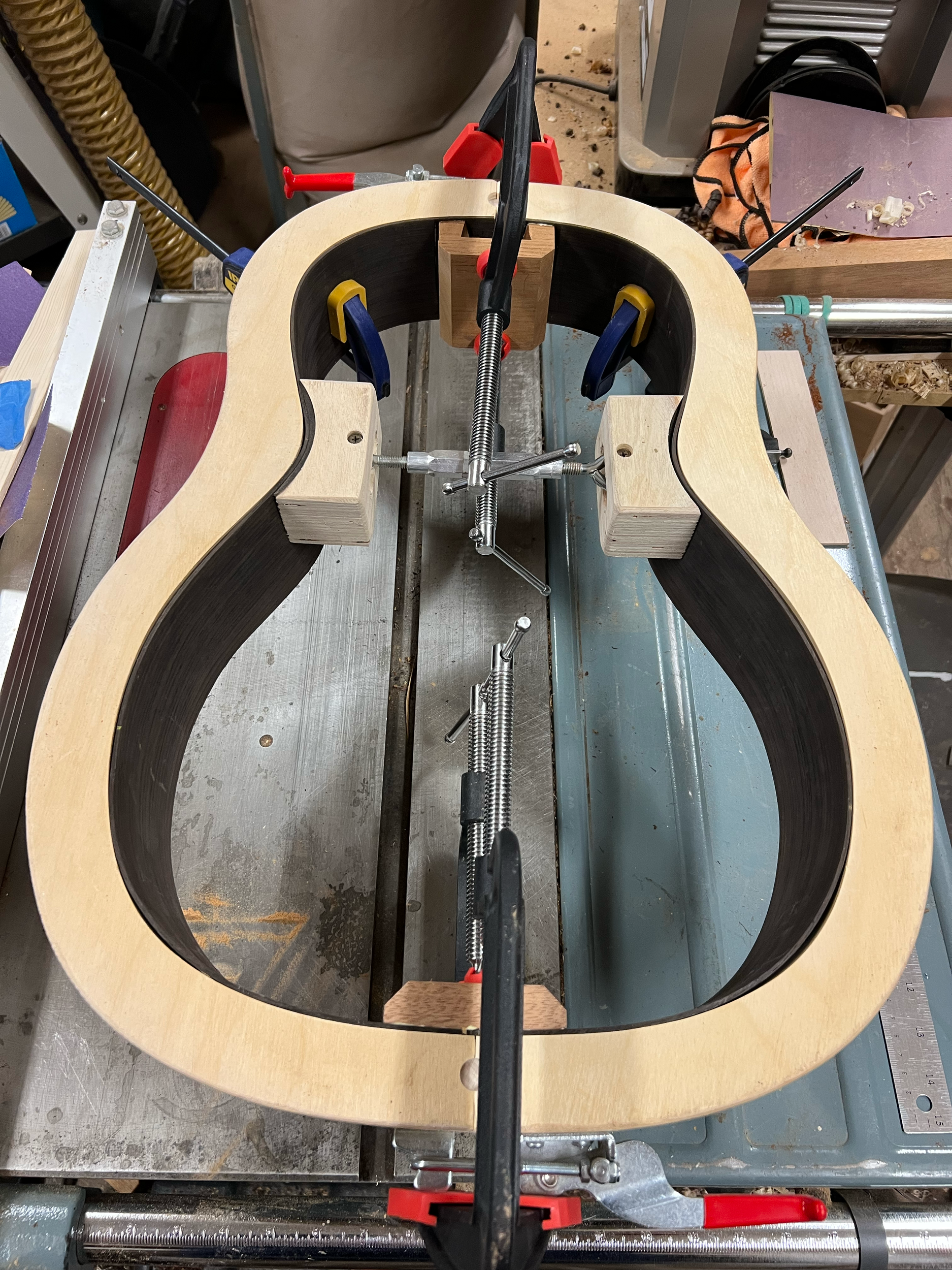

The bent Brazilian Rosewood sides in the body form for glue-up with the neck and tail blocks to make the rim.

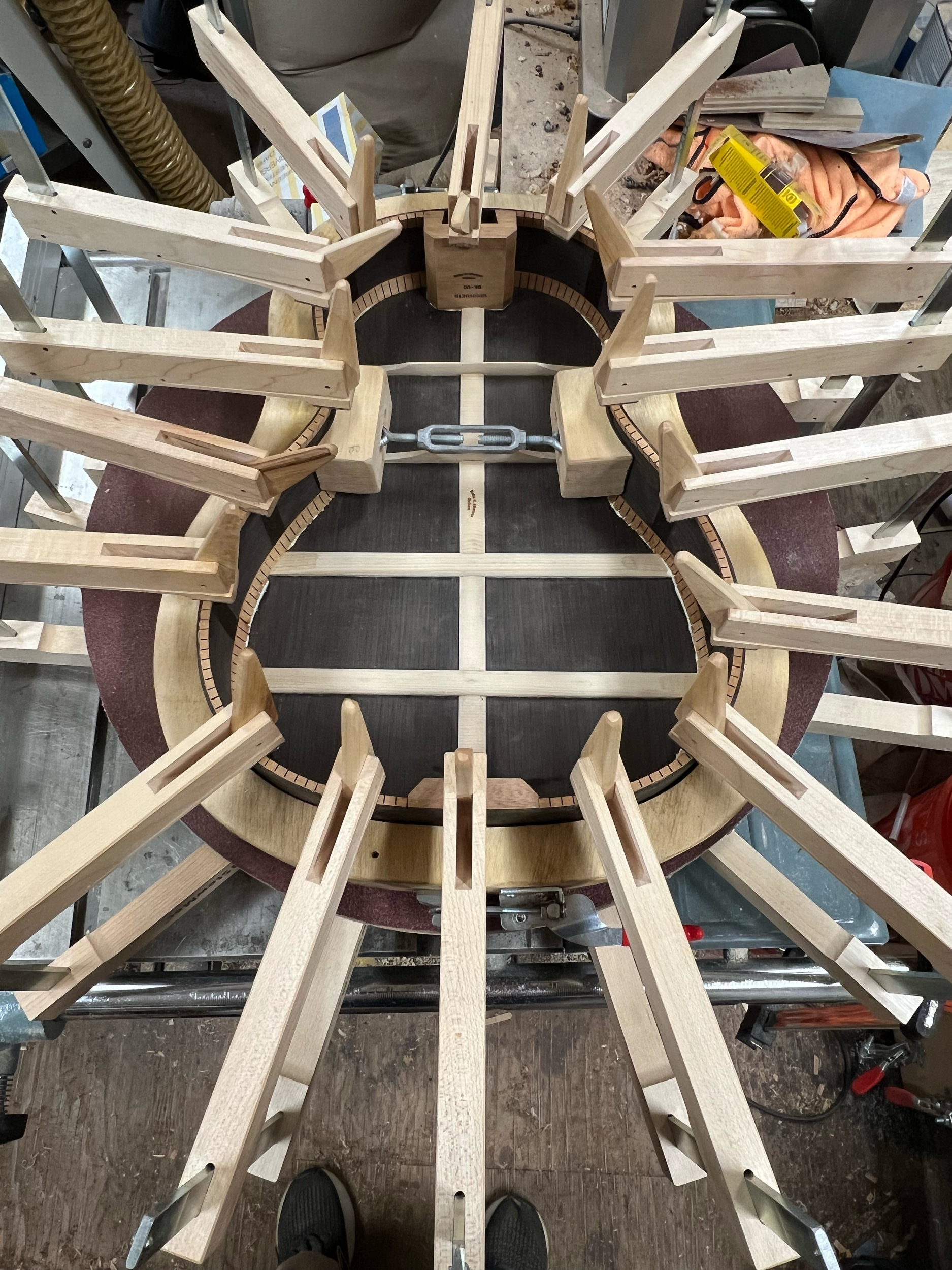

Attaching the back to the sides.

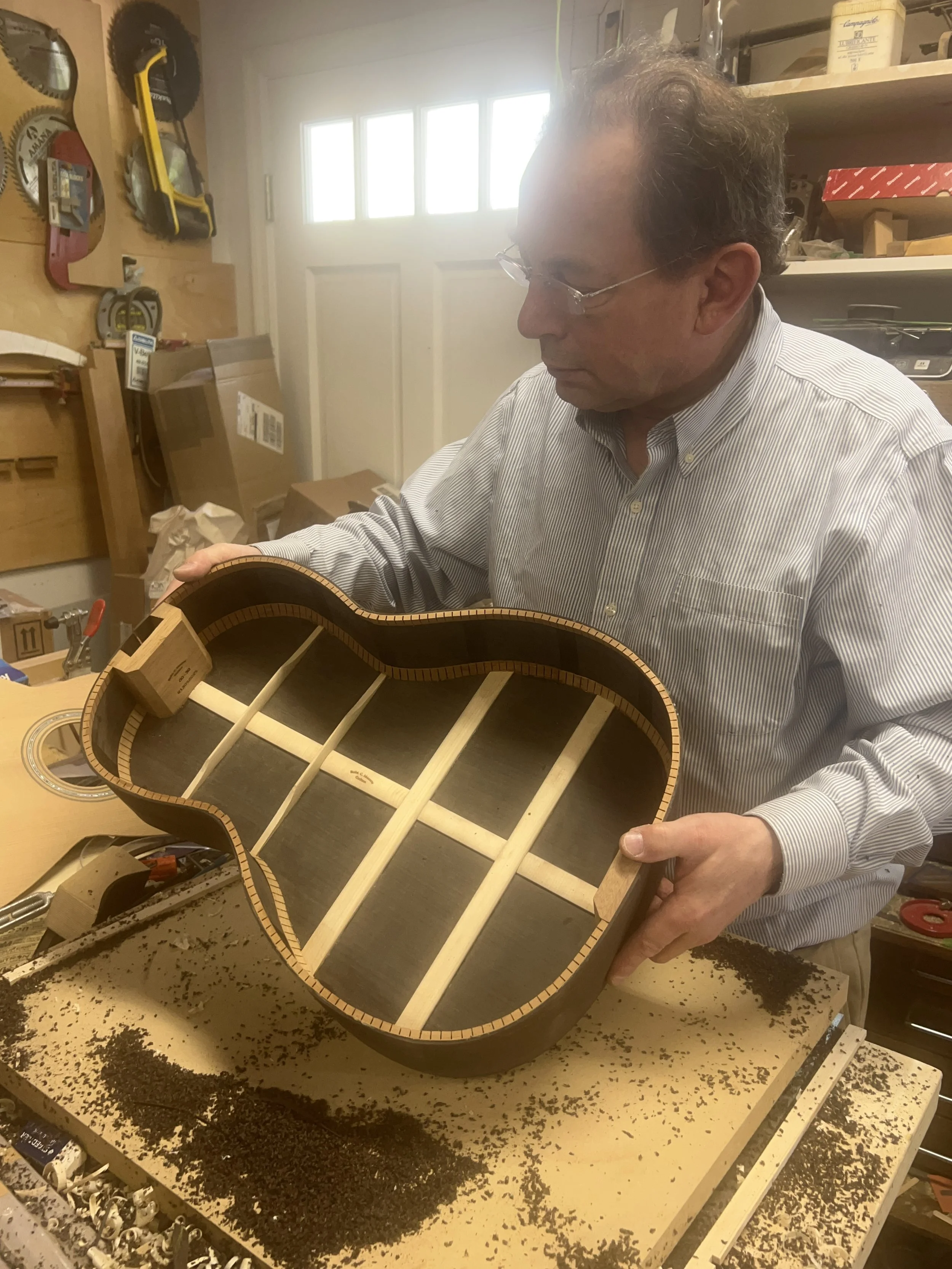

Inspecting the glued back and sides before attaching the soundboard/top.

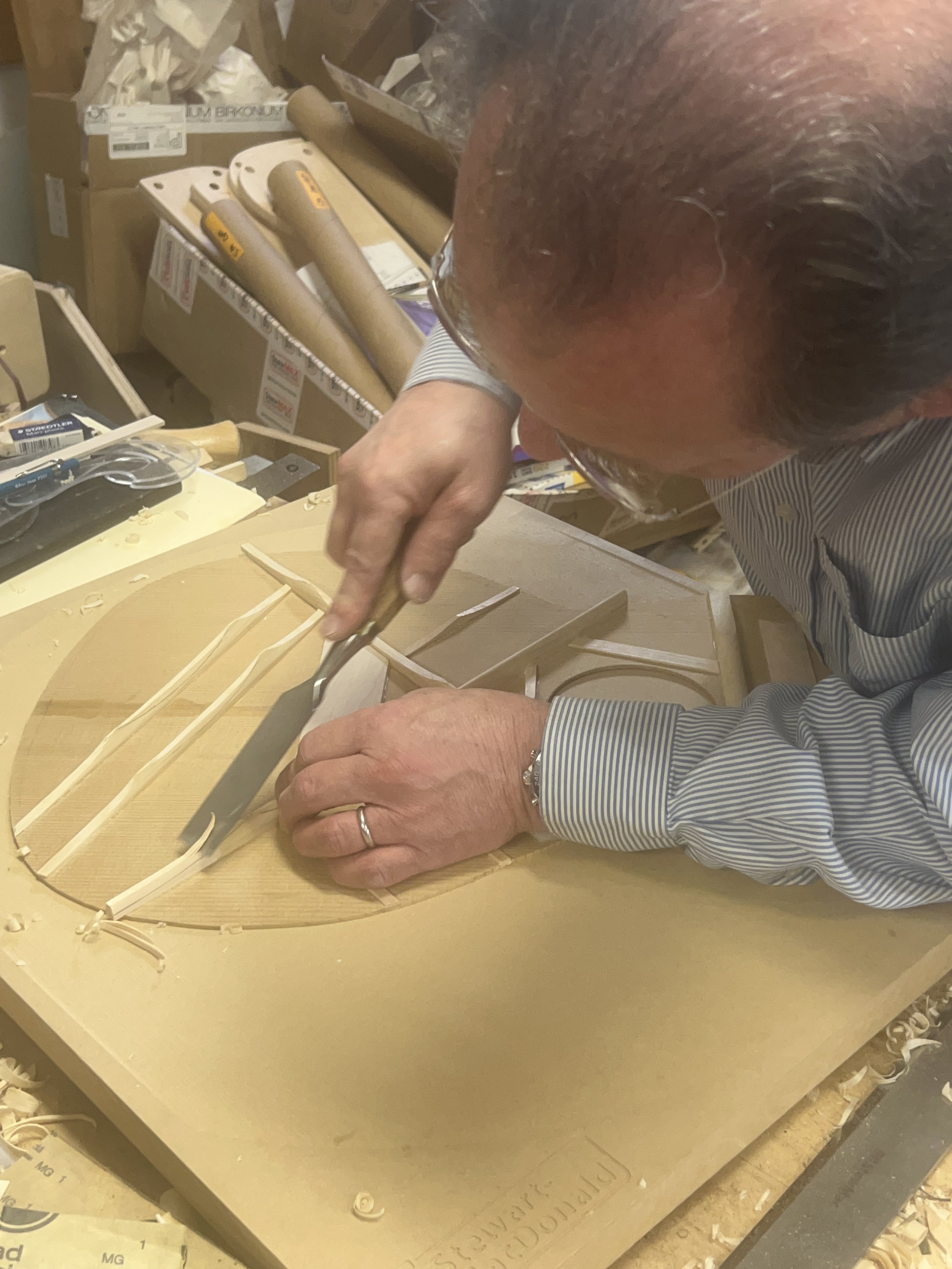

Shaping and carving the bracing on the soundboard and top to final dimensions to achieve acoustic tonal qualities desired for this guitar.

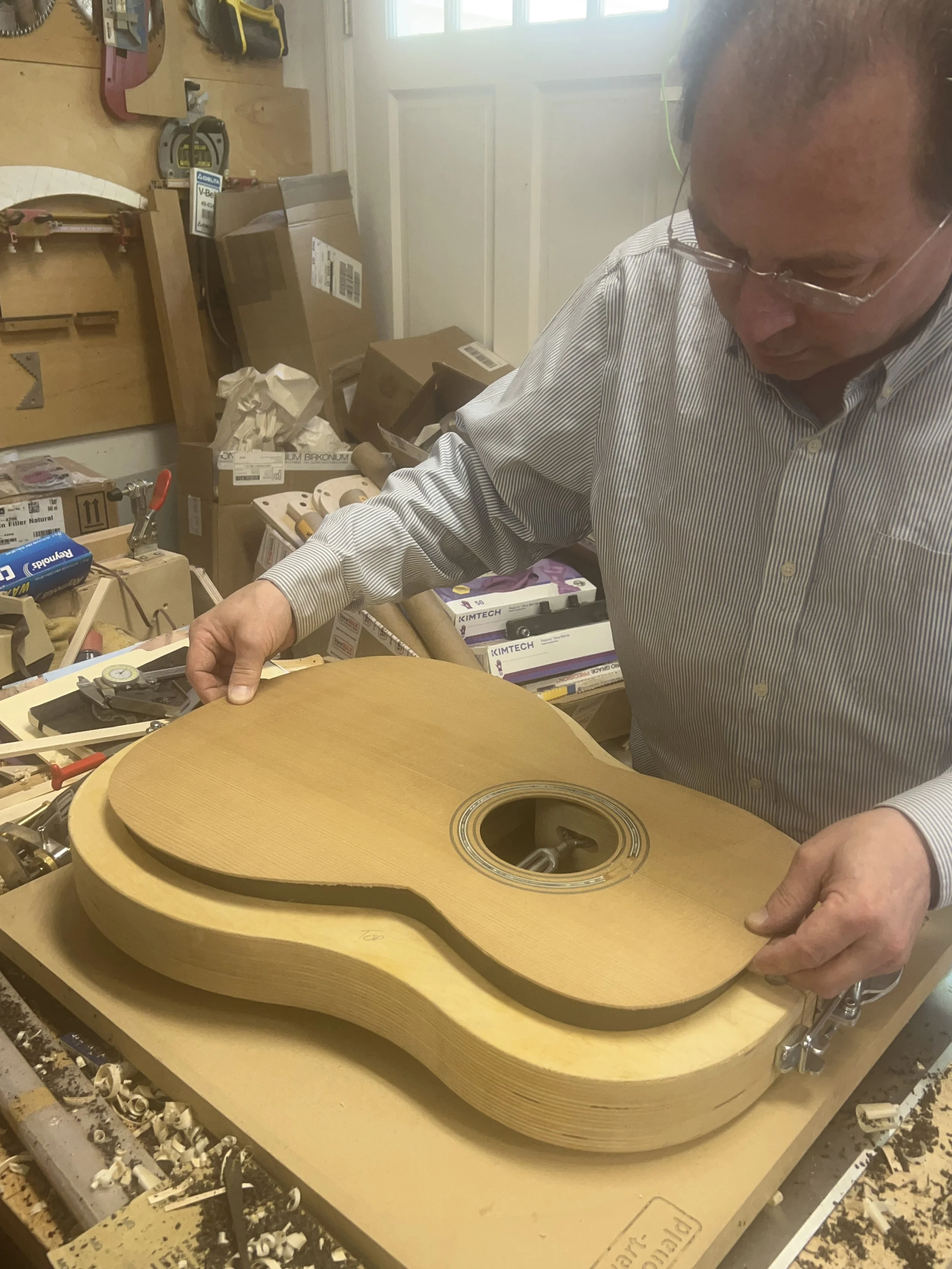

Test-fitting the soundboard/top to prepare for glue-up.
End graft and soundboard/top 30 Style purfling and grained ivoroid binding detail.
The soundboard/top showing the abalone pearl inlay for the sound hole and the 30 Style purfling used on the edge.

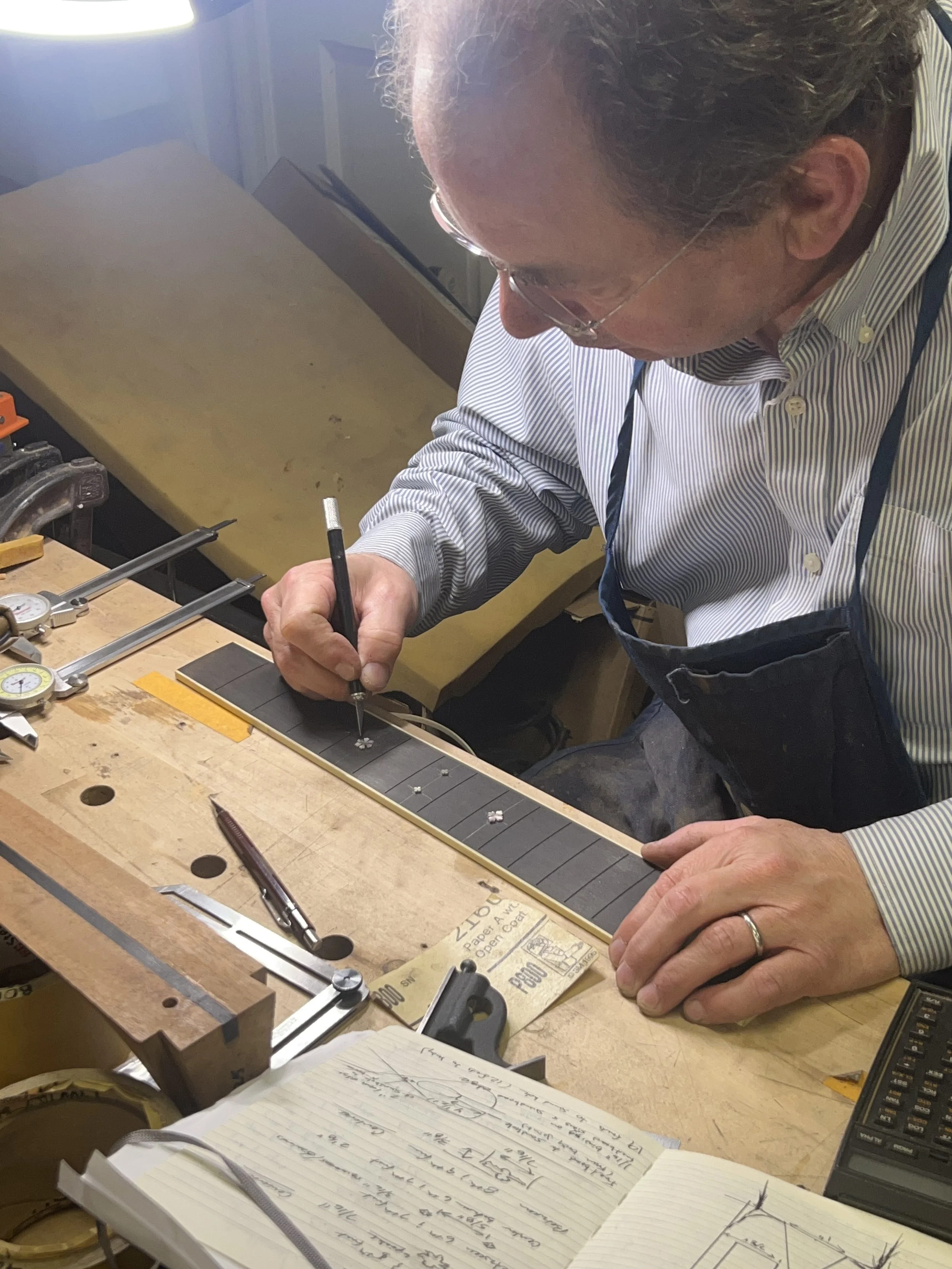

Laying out the abalone pearl fret markers on the fret board for inlay.

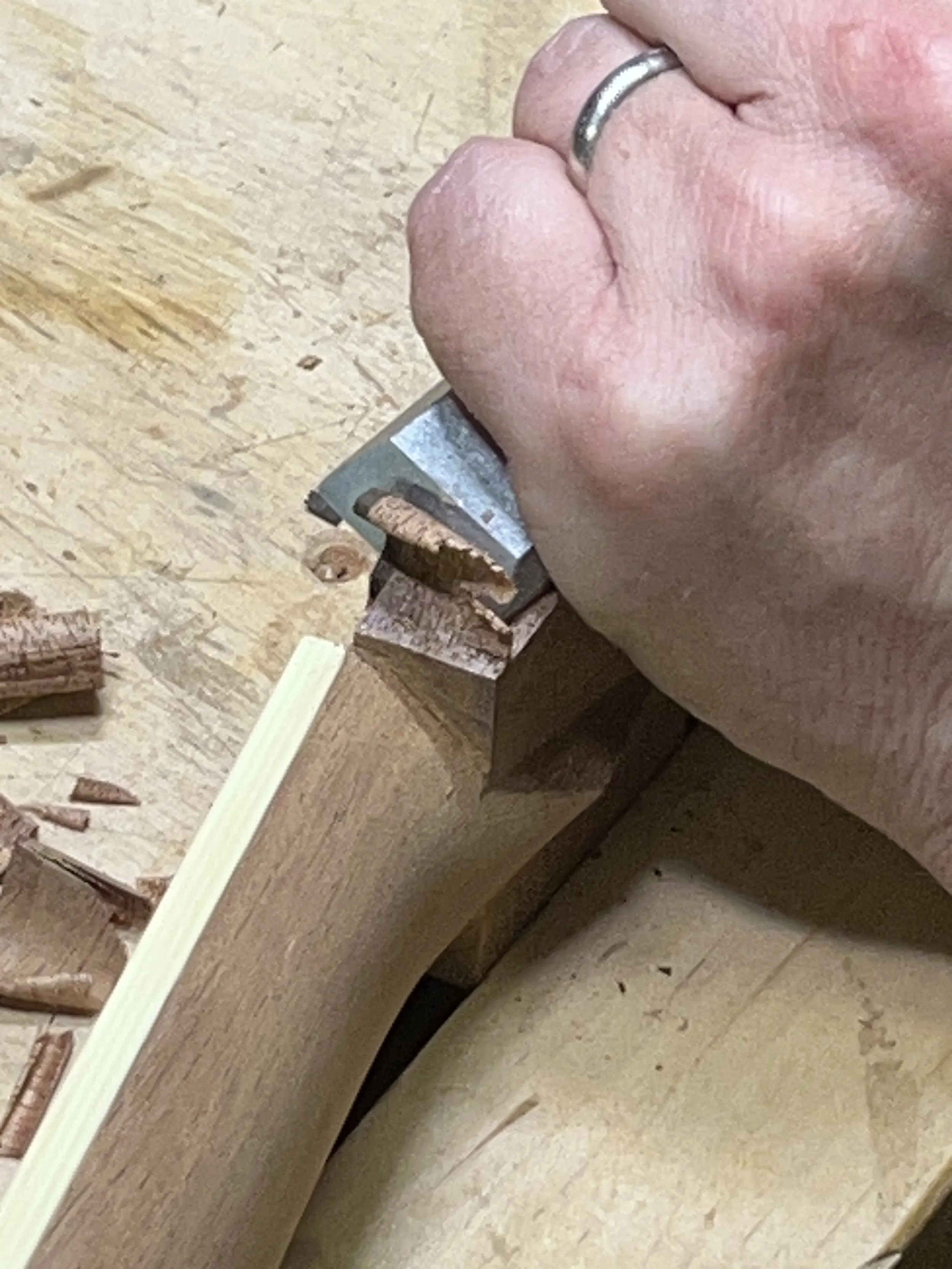

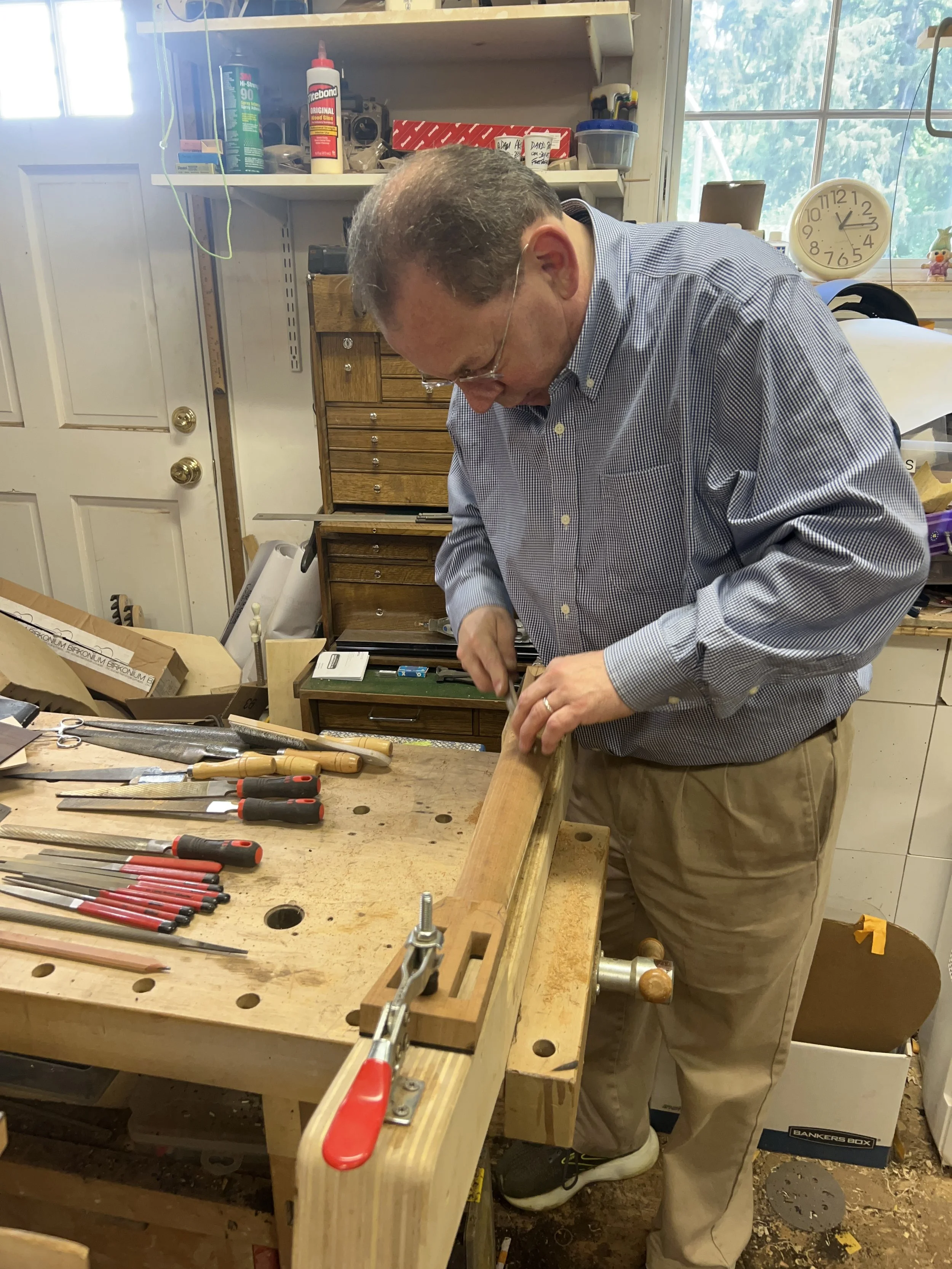

Shaping the Mahogany neck.
Final shaping of the headstock to neck transition.
Headstock to neck transition shaping is completed other than final sanding.
Finishing the completed body with the first coat of natural shellac sealer. This will be followed by 9-12 very thin coats of nitrocellulose lacquer to finish the guitar, then it is hand-sanded and hand-buffed for the final steps of the finish process.

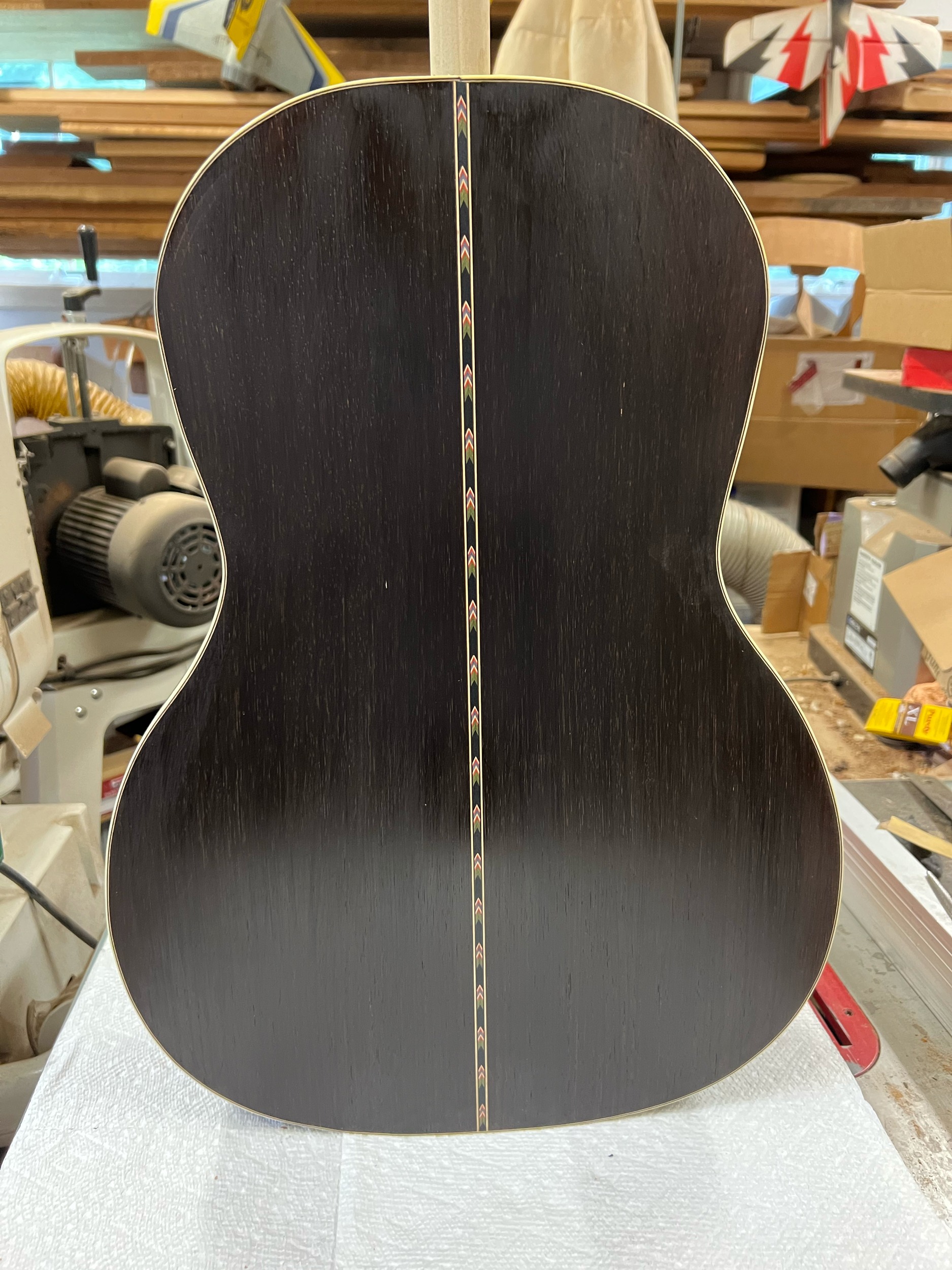

The Brazilian Rosewood back after the first coat of natural shellac sealer. This will be followed by filler coats and then 9-12 very thin coats of nitrocellulose lacquer to finish the guitar, then it is hand-sanded and hand-buffed for the final steps of the finish process.
Back of the headstock before final hand-sanding and hand-buffing.

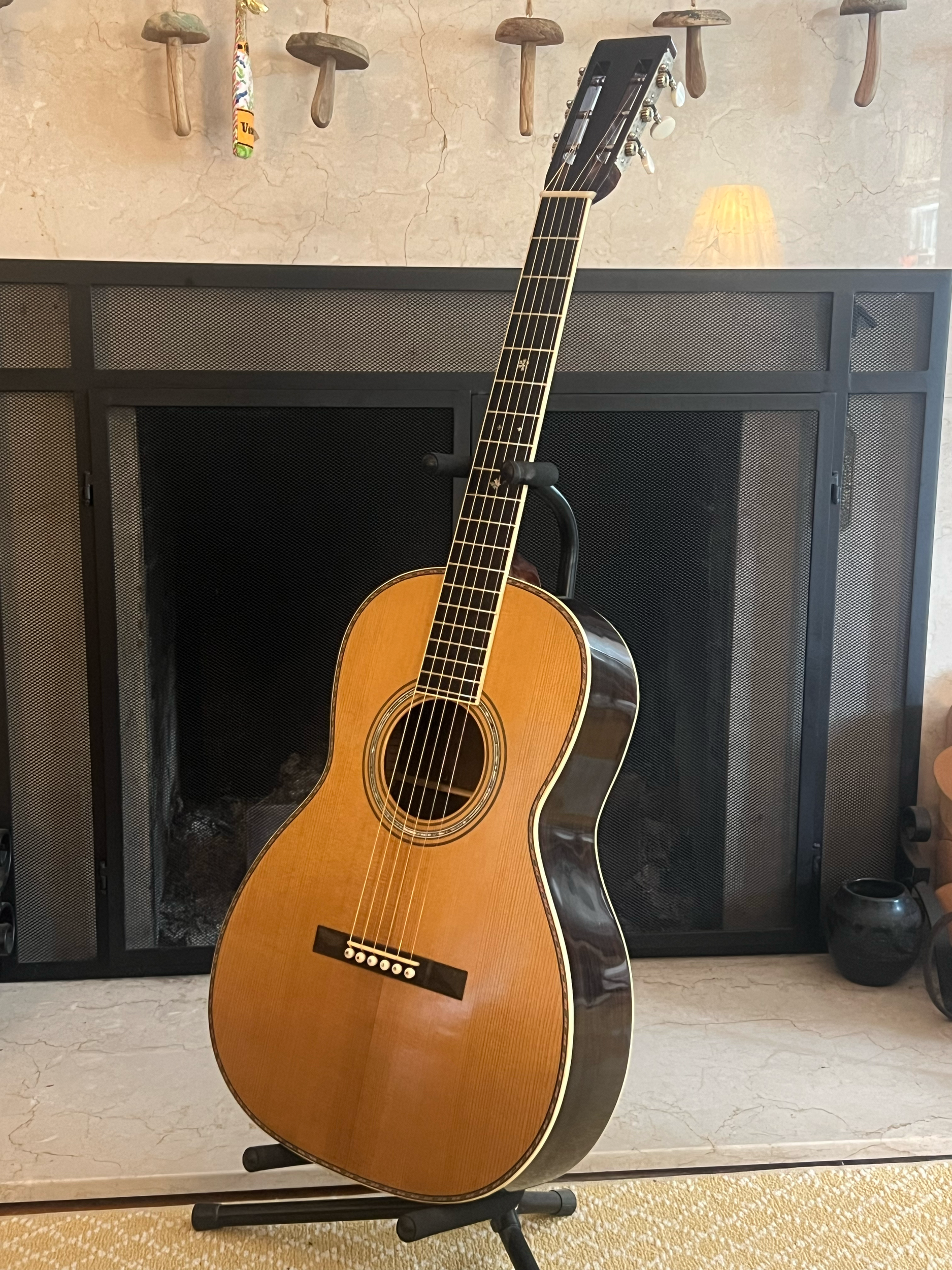

The finished 00-30 "1910" ready to play.
